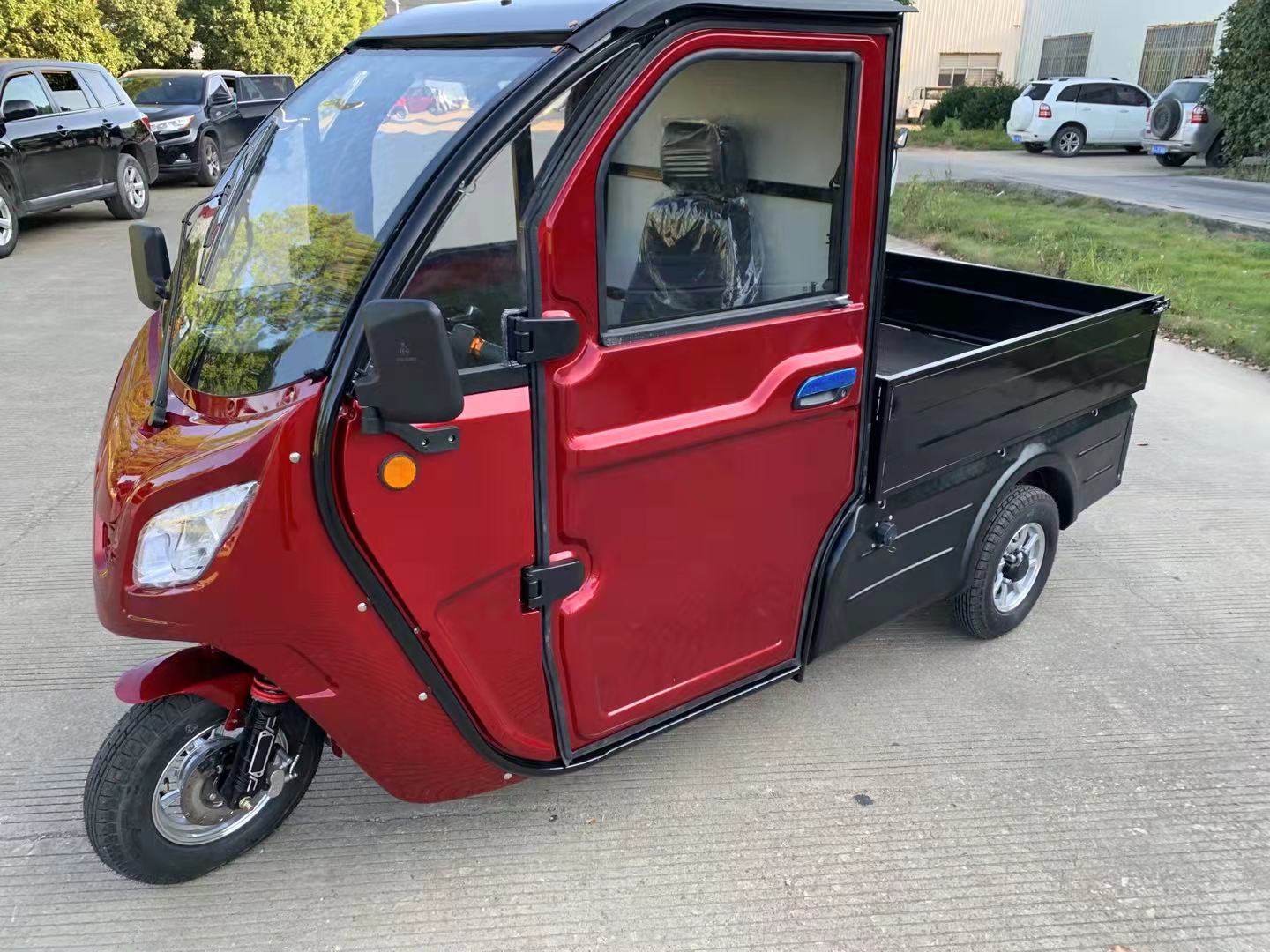

YINJIAN Cargo Car 3 Wheel
new designed 1500w 2200w 3000w electric cabin scooter eec coc enclosed electric tricycle for adult popular 3 wheel electric trike scooter bike electric scooter car high quality eec coc 3 wheel 4 wheel electric cargo car for goods dispatch express food delivery advertisement hot sale electric vehicle lead acid lithium battery drive motorcycle easy to do to old people disabled handicapted 25km 45km coc electric enclosed cabin scooter open body trike scooter golf car for patrol sightseeing relaxed life leasure time
EEC No.: e13_168_2013_00895_00 Category of vehicle: L5e-B | |
Model | YINJIAN |

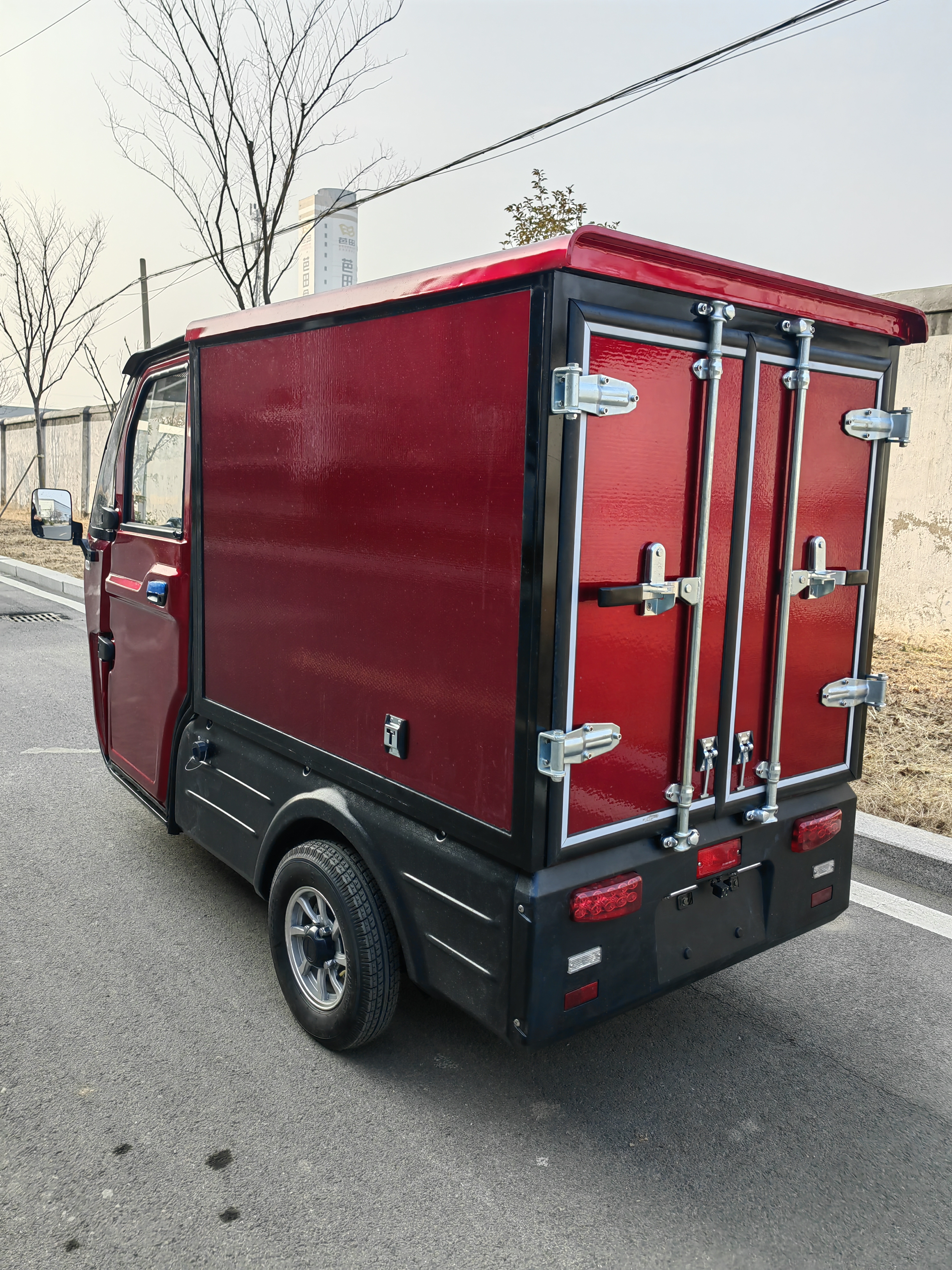

Vehicle style/pattern | enclosed driving cabine with 2 doors; 1 seat for driver; enclosed or semi-closed/open rear carrier |
Cabin material | ABS and integrated steel skeleton frame |
Size | 2990x 1090 x 1650mm |
Container Size | 1390x1050x970mm |
Wheel track | Front wheel/rear wheel 2100 mm |
Wheel base | 1000mm |
Handling | Handle type |
Driving type | Rear wheel driving |
Front wheel turning | 30° |
Ground clearance | 110mm |
Mass Weight | 500kg |
Brake F/R | front drum brake, rear disc brake |
Structure | front fork suspension/rear wheel integral damping suspension |
Tire/Tire pressure | 4.0-10 |
Rim | Steel rim |
Motor | |
Motor Type | Permanent magnet synchronous motor |
Output | 3000w |
Output (V) | 60V |
Rotating Speed | 3000rpm |
Controller | 36tubes |
Battery | |
Battery type | Free maintainance Lead-Acid |
Standard Battery Capacity | 60V100ah（12V*5PCS) |
Battery weight | 60v100ah |
Performance | |
Loading Capacity | 200kg |
Max. Torque | 8Nm |
Max. Speed | three speed shift between 45km/35km/25km |
Reverse Speed | 8km/h |
Driving distance | around 80km per charge of 100ah lead-acid battery on condition of 240kg load capacity, longer distance if with lithium battery |
Braking distance( 20km/h) | ≤3 m |
Minimum turning radius | 4.3m |
Climbing Ability | 20% |
Function device | |
1)head light with 5 meters lighting distance; 2)LED light bulb; 3) front disc brake,rear disc brake; 4) correct turning radius; 5) hand brake; 6)centrol lock; 7)soft/slow-start; 8)hazard warning light; 9)blank white plate; hard logo(E-RUN), no stickers on vehicles'body; 10)vehicle-mounted media player(MP3/MP4/radio/ USB/ bluetooth); 11)high-back driver seat; 12)driver seat belt; 13) water spray wiper; 14) 600w warm air blower; 15)multifunction LCD speedometer; 16)reversing camera; 17) sun visor; 18) steel doors; 19)electric door window; 20)openable sun roof window; 21)Tire size: front 100/90-10; 120/90-10; 22)anti/slow-sliding slop; 23) footbrake 24) handbrake. | |
Packing,Loading&Delivery | |
Regular Color Option
from left to right: metal blue,metal grey,metal green,wine red,pure white,sky blue
EEC approved
Experience the freedom of effortless navigation through crowded streets and narrow pathways, without compromising on safety or comfort.
Invest in the future of transportation with our EEC-approved Electric Tricycle. Combining cutting-edge technology, superior craftsmanship, and a commitment to sustainability, this adult electric tricycle is the epitome of reliability and efficiency.
