YINJIAN Cargo Car 3 Wheel
new designed 1500w 2200w 3000w electric cabin scooter eec coc enclosed electric tricycle for adult popular 3 wheel electric trike scooter bike electric scooter car high quality eec coc 3 wheel 4 wheel electric cargo car for goods dispatch express food delivery advertisement hot sale electric vehicle lead acid lithium battery drive motorcycle easy to do to old people disabled handicapted 25km 45km coc electric enclosed cabin scooter open body trike scooter golf car for patrol sightseeing relaxed life leasure time
EEC No.: e13_168_2013_00895_00 Category of vehicle: L5e-B | |
Model | YINJIAN |
Vehicle style/pattern | enclosed driving cabine with 2 doors; 1 seat for driver; enclosed or semi-closed/open rear carrier |
Cabin material | ABS and integrated steel skeleton frame |
Size | 2990x 1090 x 1650mm |
Container Size | 1390x1050x970mm |
Wheel track | Front wheel/rear wheel 2100 mm |
Wheel base | 1000mm |
Handling | Handle type |
Driving type | Rear wheel driving |
Front wheel turning | 30° |
Ground clearance | 110mm |
Mass Weight | 500kg |
Brake F/R | front drum brake, rear disc brake |
Structure | front fork suspension/rear wheel integral damping suspension |
Tire/Tire pressure | 4.0-10 |
Rim | Steel rim |
Motor | |
Motor Type | Permanent magnet synchronous motor |
Output | 3000w |
Output (V) | 60V |
Rotating Speed | 3000rpm |
Controller | 36tubes |
Battery | |
Battery type | Free maintainance Lead-Acid |
Standard Battery Capacity | 60V100ah（12V*5PCS) |
Battery weight | 60v100ah |
Performance | |
Loading Capacity | 200kg |
Max. Torque | 8Nm |
Max. Speed | three speed shift between 45km/35km/25km |
Reverse Speed | 8km/h |
Driving distance | around 80km per charge of 100ah lead-acid battery on condition of 240kg load capacity, longer distance if with lithium battery |
Braking distance( 20km/h) | ≤3 m |
Minimum turning radius | 4.3m |
Climbing Ability | 20% |
Function device | |

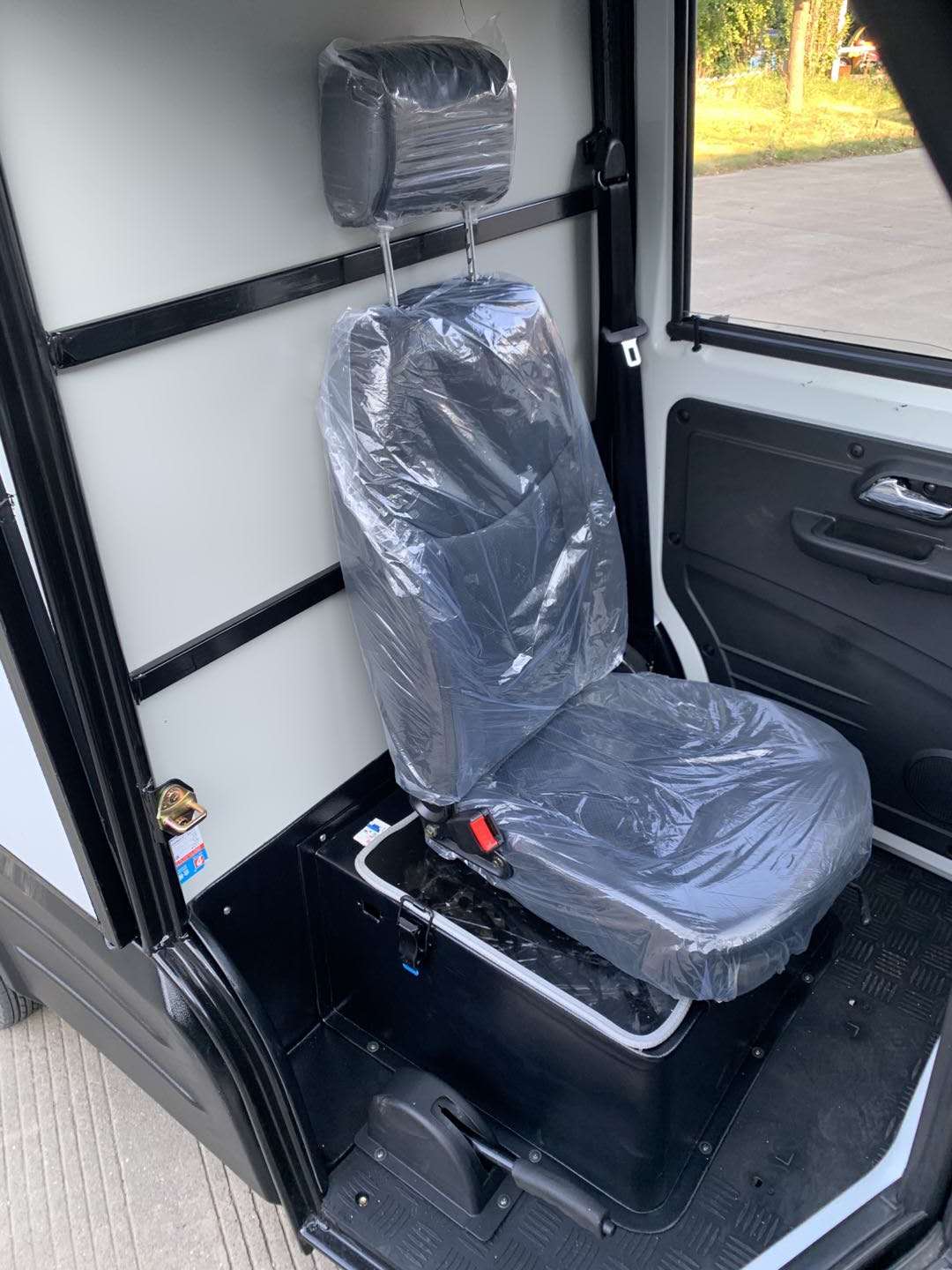

1)head light with 5 meters lighting distance; 2)LED light bulb; 3) front disc brake,rear disc brake; 4) correct turning radius; 5) hand brake; 6)centrol lock; 7)soft/slow-start; 8)hazard warning light; 9)blank white plate; hard logo(E-RUN), no stickers on vehicles'body; 10)vehicle-mounted media player(MP3/MP4/radio/ USB/ bluetooth); 11)high-back driver seat; 12)driver seat belt; 13) water spray wiper; 14) 600w warm air blower; 15)multifunction LCD speedometer; 16)reversing camera; 17) sun visor; 18) steel doors; 19)electric door window; 20)openable sun roof window; 21)Tire size: front 100/90-10; 120/90-10; 22)anti/slow-sliding slop; 23) footbrake 24) handbrake. | |
Packing,Loading&Delivery | |
Regular Color Option
from left to right: metal blue,metal grey,metal green,wine red,pure white,sky blue

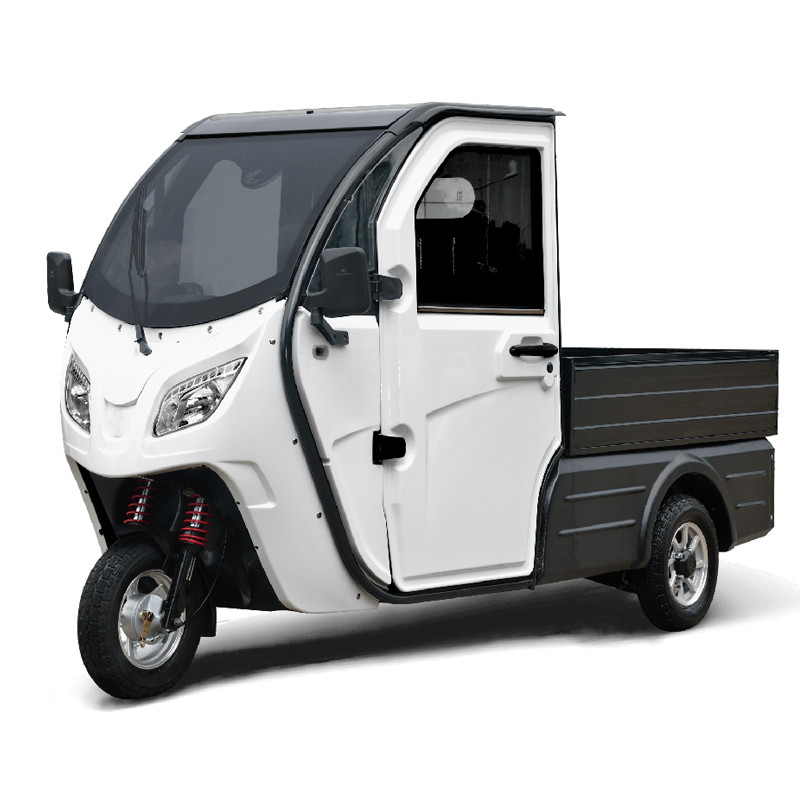

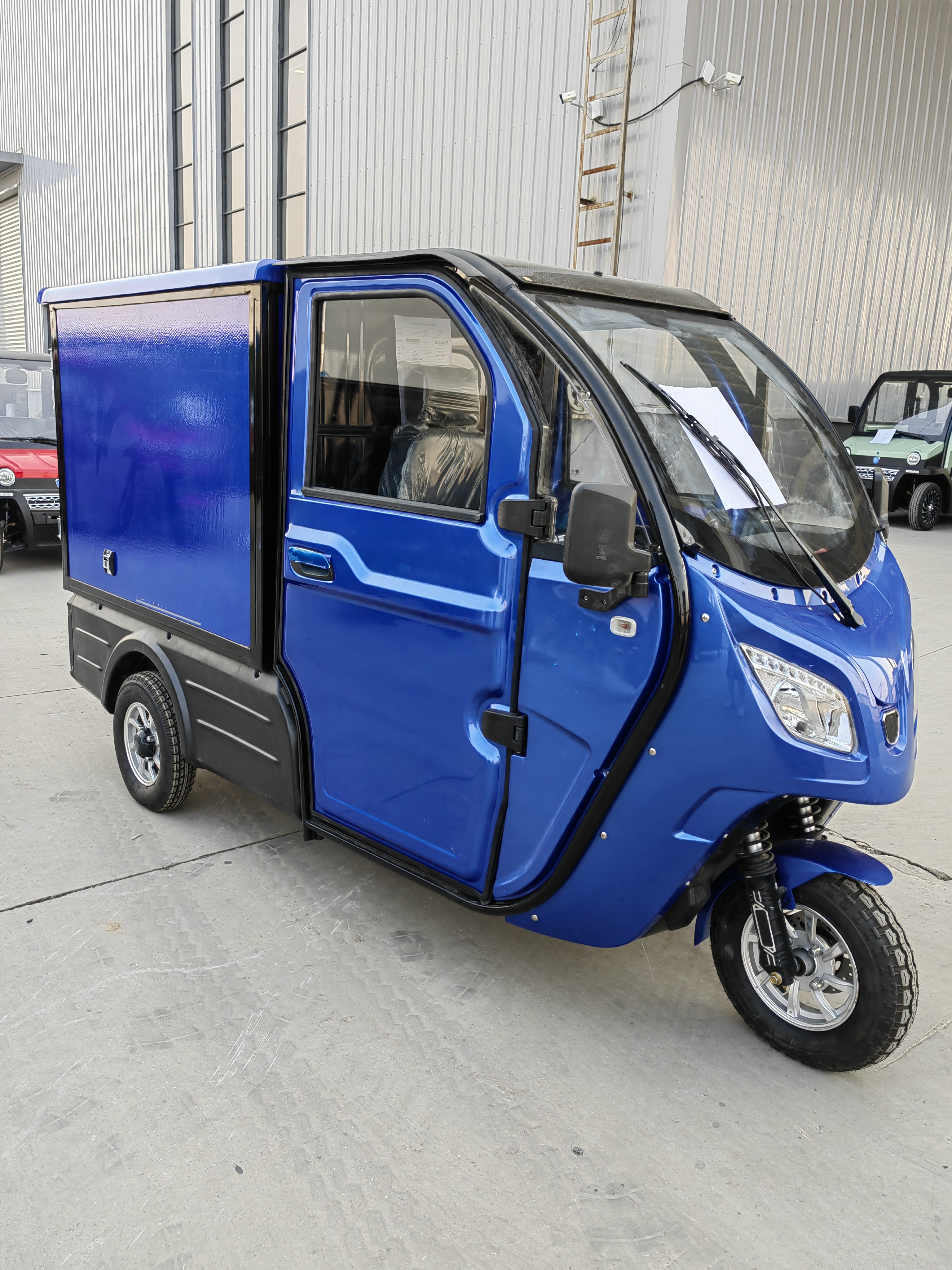

New electric cargo car for adult
Introducing our brand new 3-wheel cargo car, the ultimate solution for all your transportation needs! This EEC approved high-quality vehicle is designed to provide you with the utmost convenience and efficiency.
This cargo car size of 2990x 1090 x 1650mm, our 3 wheel cargo car offers ample space to accommodate all your goods and belongings. The container size of 1390x1050x970mm ensures that you can easily load and unload your items without any hassle.the 3 wheel electric cargo car is specifically designed for adults who crave excitement and adventure. With its powerful motor and smooth handling, you'll feel like you're flying on the road.
Say goodbye to traditional trikes and hello to the future of transportation. Don't miss out on this incredible electric car that combines style, comfort, and performance all in one. Get ready to revolutionize your daily commute with our electric car. Order yours today and experience the thrill of driving like never before.
