PBL80-YJA
new designed 1500w 2200w 3000w electric cabin scooter eec coc enclosed electric tricycle for adult popular 3 wheel electric trike scooter bike electric scooter car high quality eec coc 3 wheel 4 wheel electric cargo car for goods dispatch express food delivery advertisement hot sale electric vehicle lead acid lithium battery drive motorcycle easy to do to old people disabled handicapted 25km 45km coc electric enclosed cabin scooter open body trike scooter golf car for patrol sightseeing relaxed life leasure time
Model | CLOSED body with 2 doors |
Cabin material | ABS and integrated steel skeleton frame |
Size | 2380x 1195 x 1585mm |
Handling | Handle type |
Driving type | Rear wheel driving |
Wheelbase/Rear Wheeltrack | 1620mm/1000mm |
Ground clearance | 175mm |
Curb Weight | 315kg(including battery)/360kg(gross weight) |
Brake F/R | Front /Rear hydraulic disc brake |
Fort shock absorber | Hydraulic |
Tire F/R and Rim | F: 130/60-13 R: 135/70R12 aluminium alloy rim |
Motor | |
Motor Type | DC Brushless |
Output | 1500w |
Output (V) | 60V |
Rotating Speed | 3200rpm |
Controller | 36tubes |
Battery | |
Battery type | Free maintainance Lead-Acid |
Standard Battery Capacity | 60V58ah（12V*5PCS) |
Performance | |
Loading Capacity | around 200kg |
Max. Speed | 45km/25km |
Reverse Speed | 8km/h |
Driving distance | ≥ 70km per charge of one set battery |
Braking distance( 20km/h) | 3≤ m |
Minimumturn radius | 4.5m |
Climbing Ability | >18degree |
Feature&Functional device | |
electric door window/roof window/openable rear window, water spray wiper, warm air blower, FM /MP3/MP4/USB/blue tooth, reversing camera, hand brake, adjustable seat, electric speed shift, 3 points driver seat-belt, 2 points passenger seat belt,hazard warning light, three wheel disc-brake. | |
Packing,Loading&Deliver | |
Color Option
Factory/Workshop
Packing&Loading for container
Introduce product

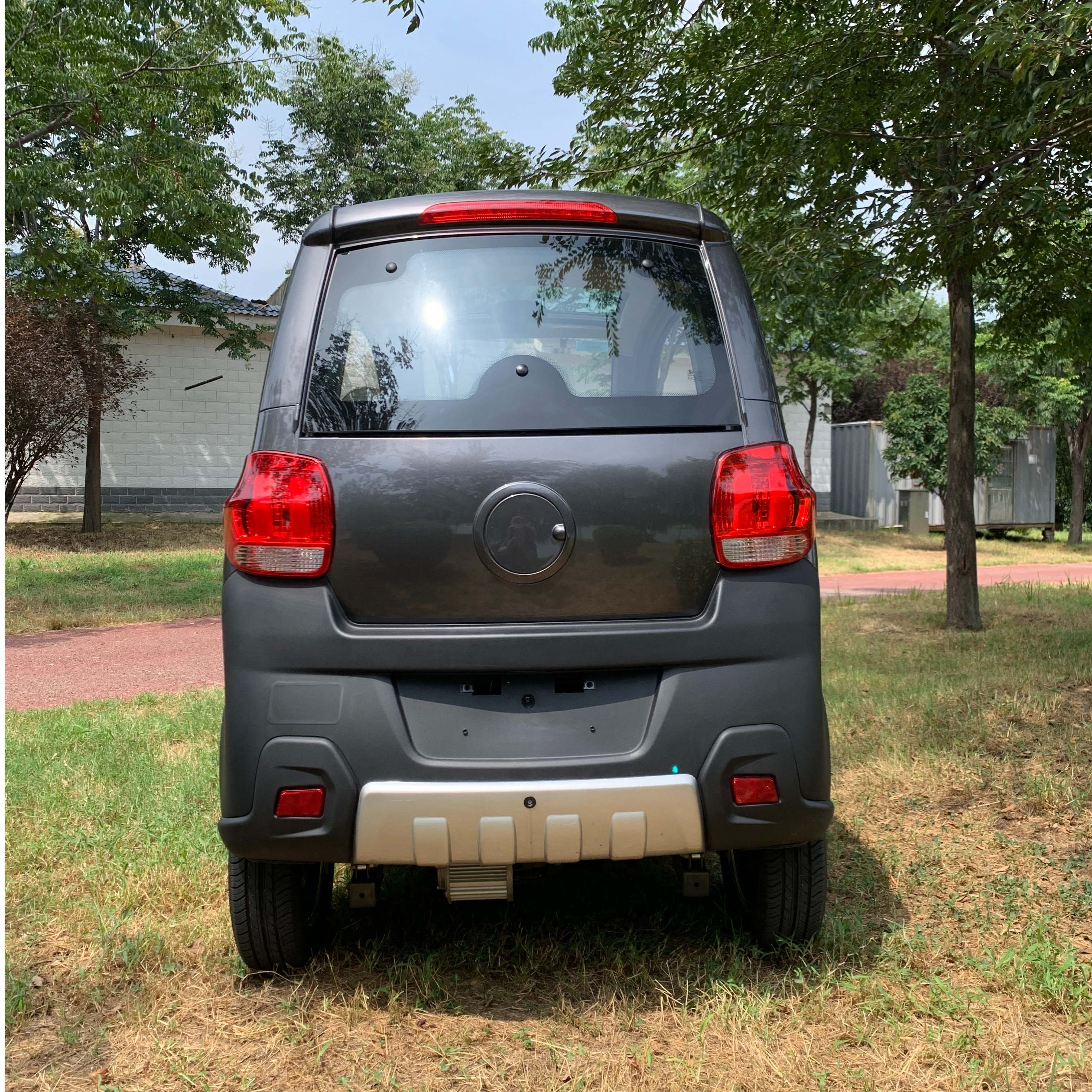

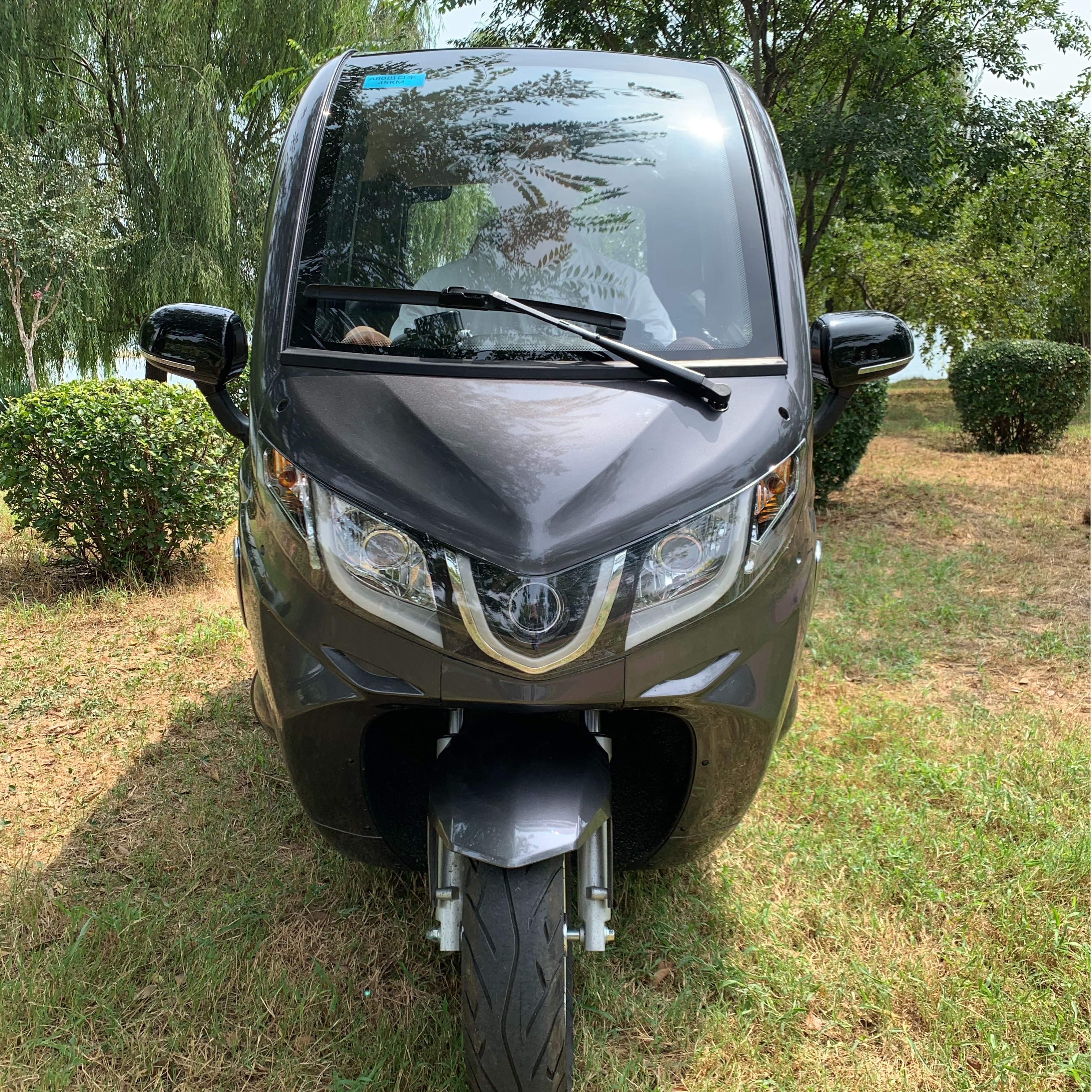

Introducing our latest innovation in personal transportation - the Electric Tricycle! Designed with convenience and style in mind, this cabin scooter is perfect for adults who are looking for a fun and efficient way to get around town.
With its sleek and modern design, this electric tricycle is not only a practical mode of transportation but also a fashion statement. The hot sale cabin scooter is sure to turn heads wherever you go.
new designed 1500w 2200w 3000w electric cabin scooter eec coc enclosed electric tricycle for adult popular 3 wheel electric trike scooter bike electric scooter car high quality eec coc 3 wheel 4 wheel electric cargo car for goods dispatch express food delivery advertisement hot sale electric vehicle lead acid lithium battery drive motorcycle easy to do to old people disabled handicapted 25km 45km coc electric enclosed cabin scooter open body trike scooter golf car for patrol sightseeing relaxed life leasure time
Model | CLOSED body with 2 doors |
Cabin material | ABS and integrated steel skeleton frame |
Size | 2380x 1195 x 1585mm |
Handling | Handle type |
Driving type | Rear wheel driving |
Wheelbase/Rear Wheeltrack | 1620mm/1000mm |
Ground clearance | 175mm |
Curb Weight | 315kg(including battery)/360kg(gross weight) |
Brake F/R | Front /Rear hydraulic disc brake |
Fort shock absorber | Hydraulic |
Tire F/R and Rim | F: 130/60-13 R: 135/70R12 aluminium alloy rim |
Motor | |
Motor Type | DC Brushless |
Output | 1500w |
Output (V) | 60V |
Rotating Speed | 3200rpm |
Controller | 36tubes |
Battery | |
Battery type | Free maintainance Lead-Acid |
Standard Battery Capacity | 60V58ah（12V*5PCS) |
Performance | |
Loading Capacity | around 200kg |
Max. Speed | 45km/25km |
Reverse Speed | 8km/h |
Driving distance | ≥ 70km per charge of one set battery |
Braking distance( 20km/h) | 3≤ m |
Minimumturn radius | 4.5m |
Climbing Ability | >18degree |
Feature&Functional device | |
electric door window/roof window/openable rear window, water spray wiper, warm air blower, FM /MP3/MP4/USB/blue tooth, reversing camera, hand brake, adjustable seat, electric speed shift, 3 points driver seat-belt, 2 points passenger seat belt,hazard warning light, three wheel disc-brake. | |
Packing,Loading&Deliver | |
Color Option
Factory/Workshop
Packing&Loading for container
Introduce product
Introducing our latest innovation in personal transportation - the Electric Tricycle! Designed with convenience and style in mind, this cabin scooter is perfect for adults who are looking for a fun and efficient way to get around town.
With its sleek and modern design, this electric tricycle is not only a practical mode of transportation but also a fashion statement. The hot sale cabin scooter is sure to turn heads wherever you go.
